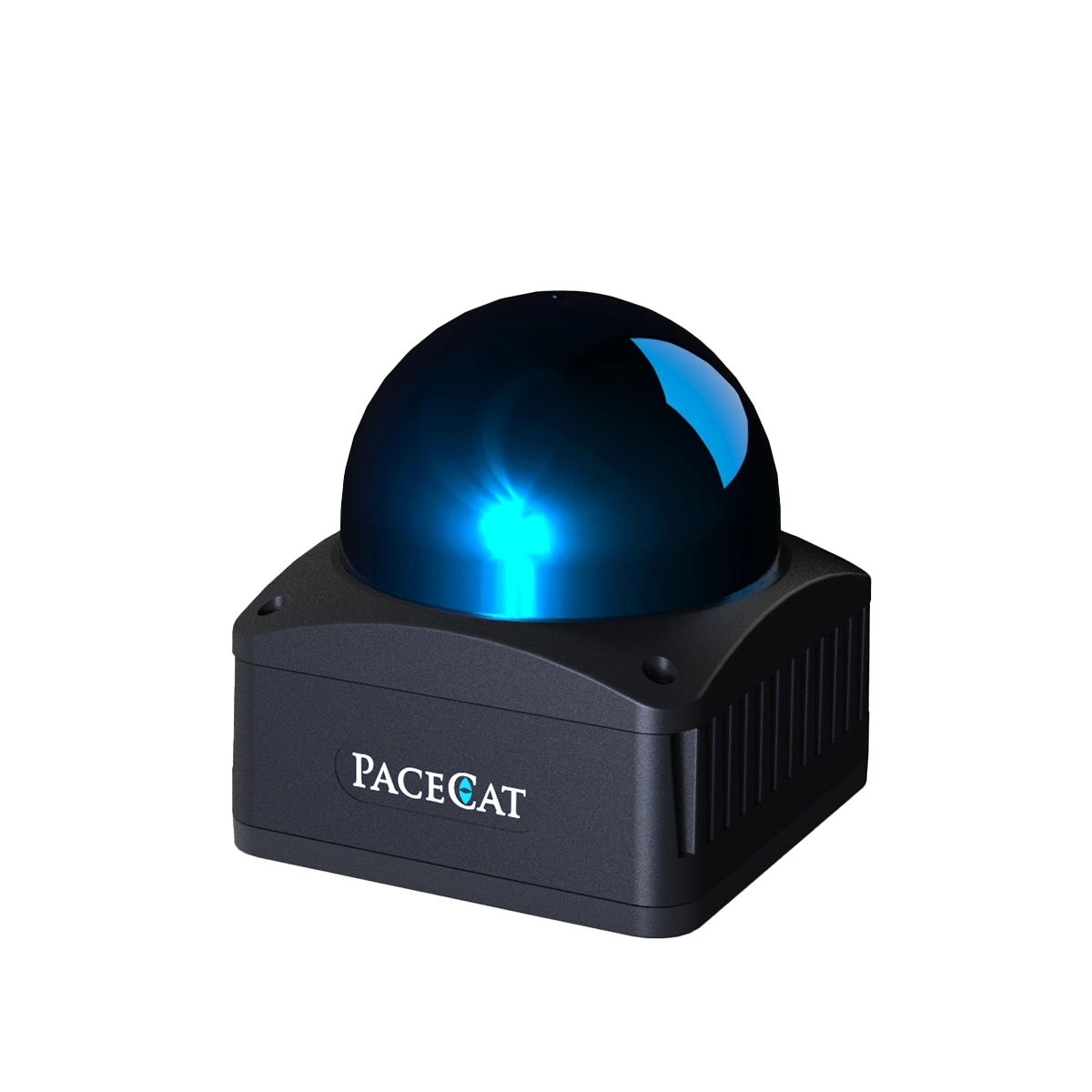

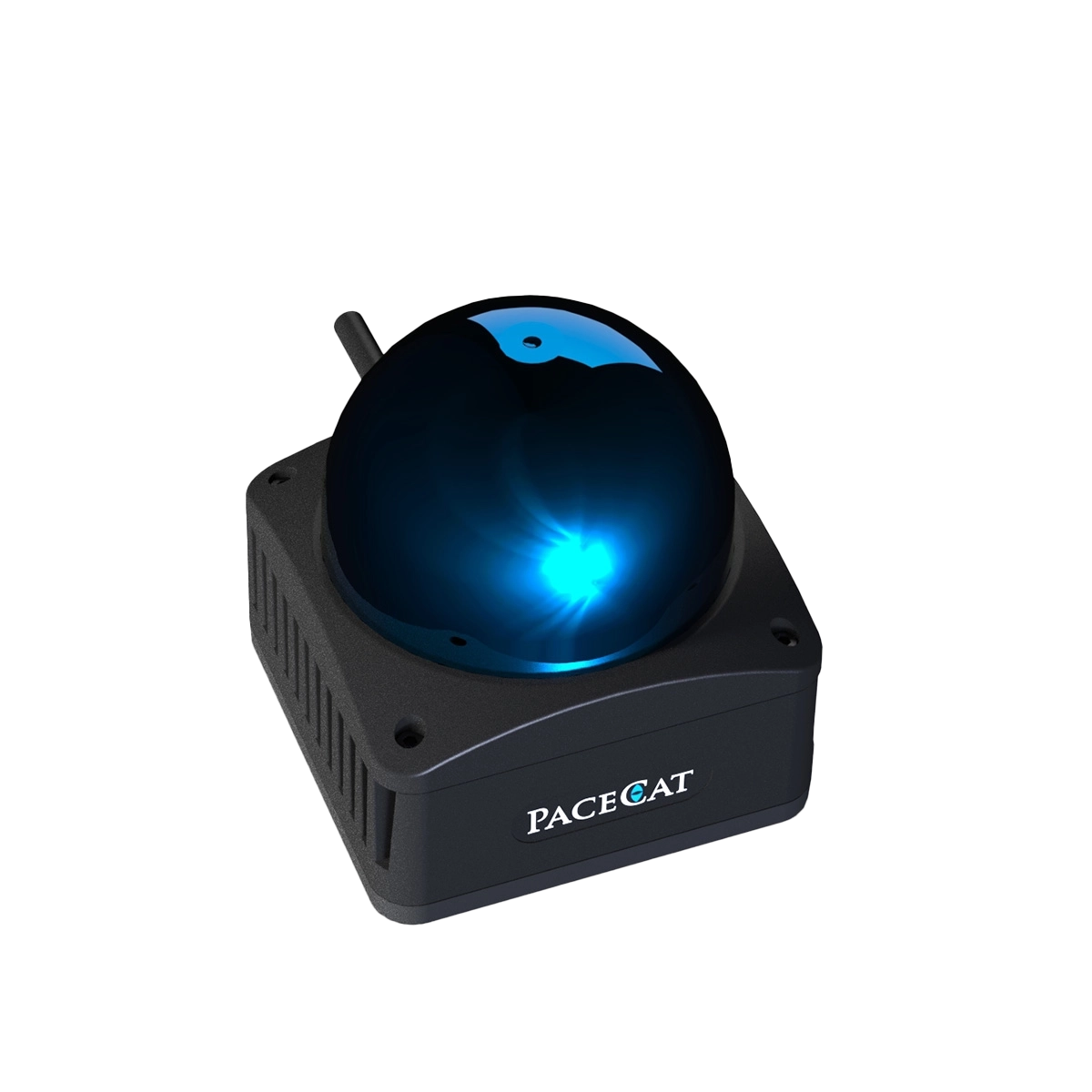

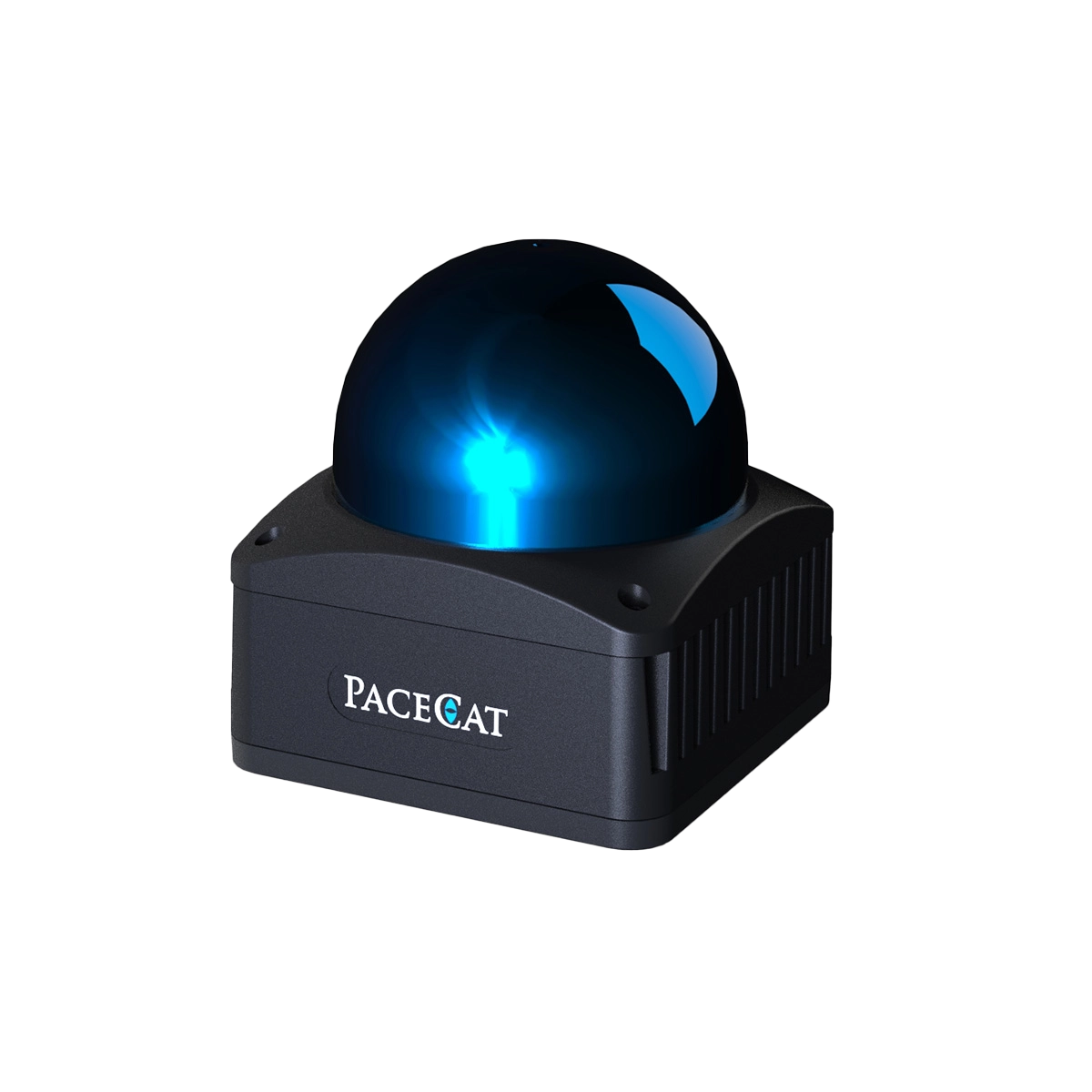

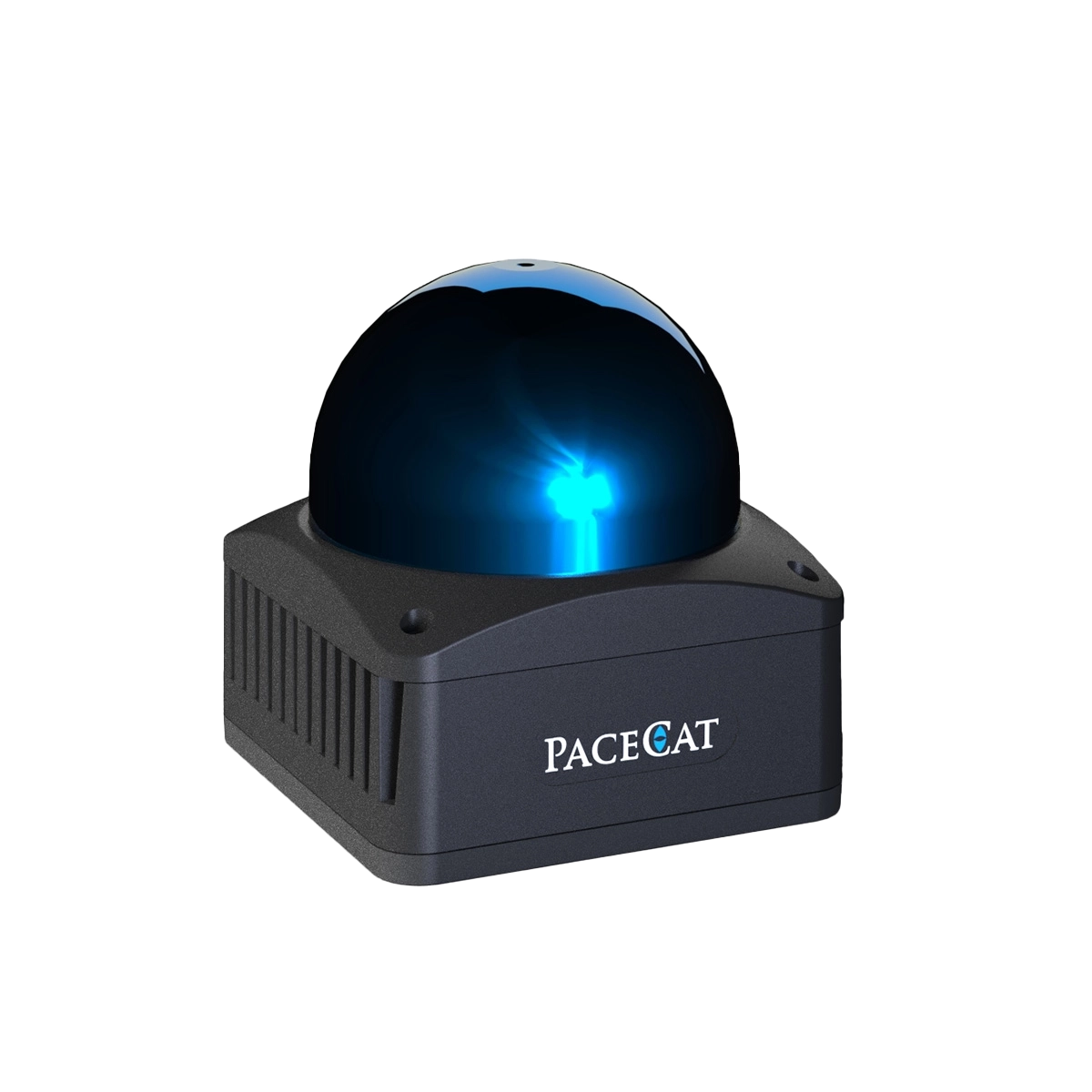

LSD-M300 Series LiDAR Sensor
Lidar Sensor

Mapping &Navigation , Stereoscopic Obstacle Avoidance, Obstacle Detection

  • Non-repetitive Scanning 3D Navigation LiDAR
  • 5cm Minimum DetectionDistance
  • Long-Range Detectable (up to 50m)
  • 360° Horizontal Fieldof View Angle

Get Your Free Quote

We will contact you within 24 hours.

    Security area protection

    Area structure sweeping

    Applications of LiDAR in various industries

    LiDAR technology is transforming the way we live and work. Nowadays, LiDAR has a wide range of applications in various fields. In smart warehouse logistics, LiDAR assists robots in precise navigation and efficient cargo handling, achieving intelligent warehouse management. In topographic surveying, it can quickly and accurately obtain data on the elevation, slope, and other characteristics of large areas, providing detailed information for map-making. In everyday life, it helps service robots to scan the environment in real time, identifying obstacles, walls, and furniture, allowing them to plan cleaning paths more effectively and improve work efficiency. LiDAR provides strong support for the digital transformation across various industries.

    LSD-M300 Series LiDAR Sensor

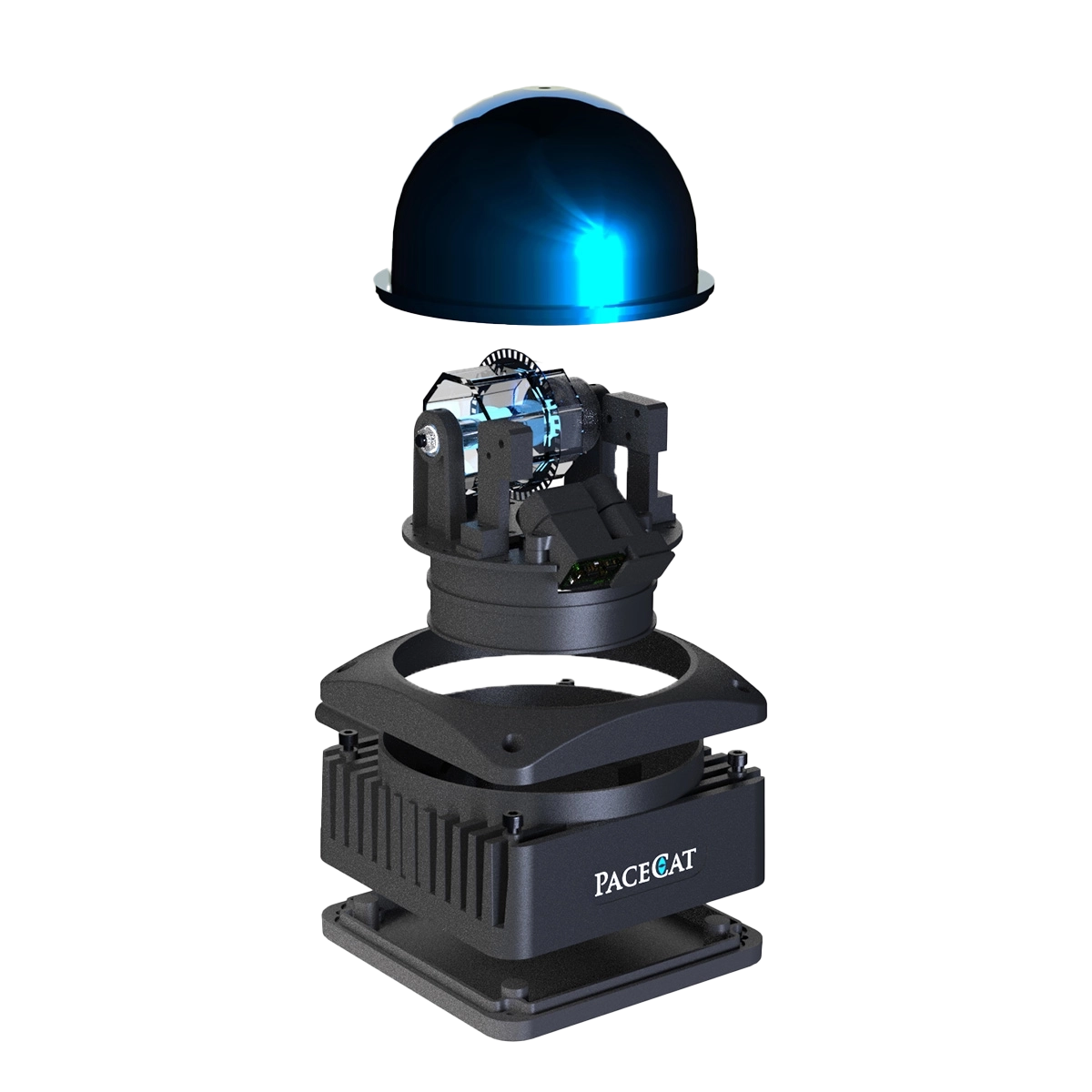

    The LDS-M300 is a new non-repetitive multi-line lidar launched by Jinhua Lanhai Photoelectricity Technology Co., Ltd.This lidar is compact in size yet powerful in performance. The designers have made full use of the non-repetitive scanning structure to achieve image-level point clouds at a very high cost-performance ratio. Its standout features include a large field of view, high field of view coverage, resistance to sunlight interference, and the ability for multi lidar cross firing simultaneously. Additionally, the lidar has a round and transparent appearance, and its coating is not only resistant to dirt and wear but also possesses an elegant and aesthetically pleasing style that is very eye-catching. The M300 is a rising star and a strong competitor in the multi-line lidar market

    Specs

    Model LDS-M300
    Laser Wave Length 905nm±15nm
    Measuring Range 0.05--50m@90%
    0.1~25m@10%
    Measure Frequency >200KHz
    Scan Frequency 10Hz
    Echo Mode Support
    Echo intensity Yes
    Scanning Principle Non-repetitive Mechanical Scanning
    Laser Dot Count /
    Vertical Angle -10°~60°
    Measure Angle 360°
    Vertical Resolution Horizontal and vertical resolution should be related to the actual point cloud and update speed
    Horizontal Resolution Horizontal and vertical resolution should be related to the actual point cloud and update speed
    Ranging Accuracy ±3cm
    Range Resolution 10mm
    Communication Interface Ethernet
    Optical Interference Resistance 100KLux
    Weight <500g
    Supply Voltage 9VDC-32VDC
    Working Temperture -10℃~60℃
    Power Dissipation ≤ 4W
    Protective Class IP67
    Size(mm) 78*78*81
