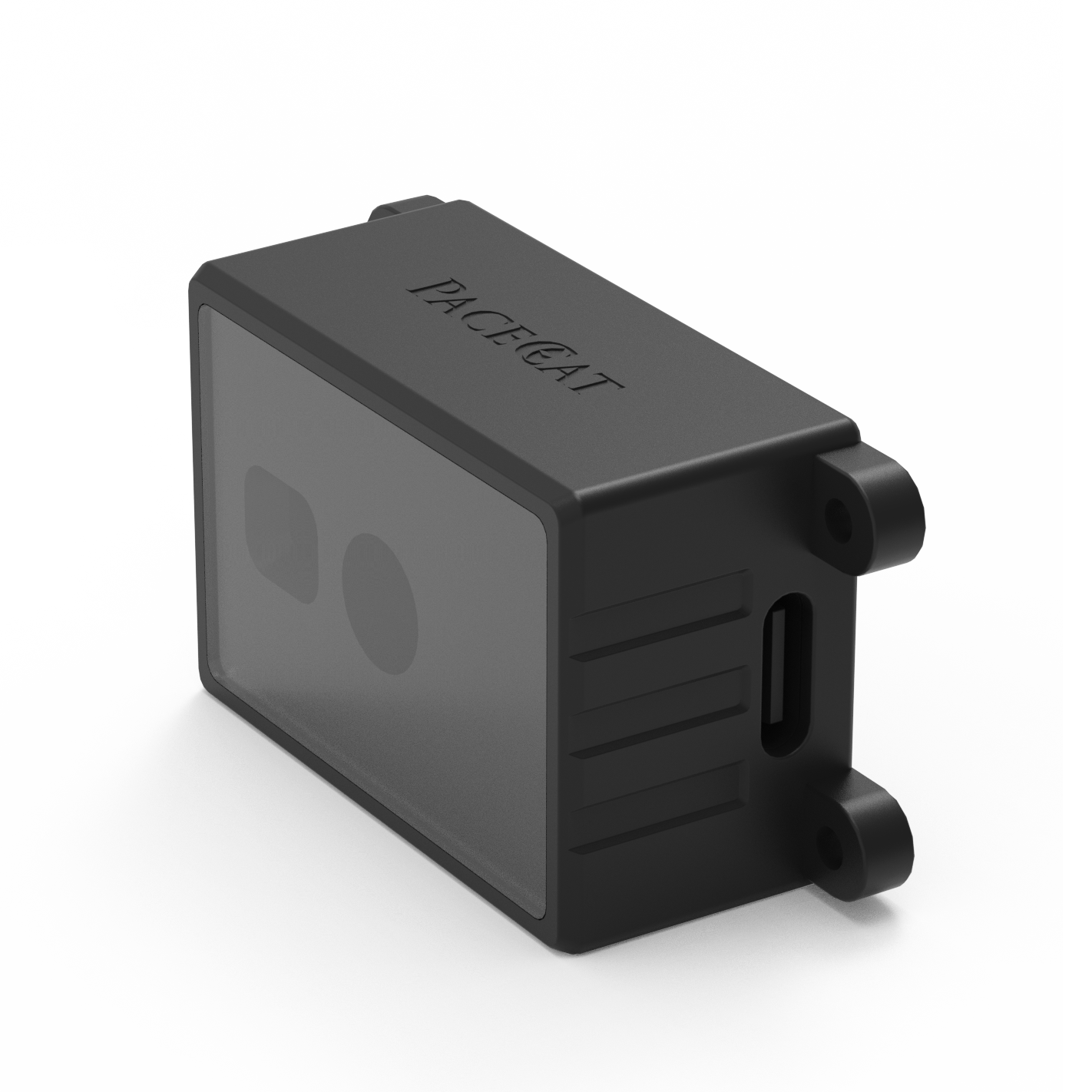

LDS-S110 Series LiDAR Sensor

Long-Range Accurate, Low-Light Agile, Compact Efficient

  • Detects up to 15 meters with pinpoint accuracy.
  • Achieves rapid focus without compromising image quality.
  • Performs effectively in low-light conditions.
  • Provides professional-level focus results.
  • Features automatic subject recognition and tracking.
  • Compact design with low power consumption for versatile integration.

Get Your Free Quote

We will contact you within 24 hours.

    Security area protection

    3D雷达避障 Pacecat-Photoelectric technology leading enterprises

    Area structure sweeping

    点云图整体 Pacecat-Photoelectric technology leading enterprises

    Applications of LiDAR in various industries

    LiDAR technology is transforming the way we live and work. Nowadays, LiDAR has a wide range of applications in various fields. In smart warehouse logistics, LiDAR assists robots in precise navigation and efficient cargo handling, achieving intelligent warehouse management. In topographic surveying, it can quickly and accurately obtain data on the elevation, slope, and other characteristics of large areas, providing detailed information for map-making. In everyday life, it helps service robots to scan the environment in real time, identifying obstacles, walls, and furniture, allowing them to plan cleaning paths more effectively and improve work efficiency. LiDAR provides strong support for the digital transformation across various industries.

    LDS-S110 Series LiDAR Sensor

    The LDS-S110 is a compact, low-power sensor with a 15-meter detection range, providing rapid and accurate auto-focus in any light.

    It features automatic subject tracking and is designed for versatile, efficient integration into a wide range of devices.

    Specs

    Model LDS-S110-D
    Laser Wave Length 940nm±15nm
    Distance 0.1~8m@10%R-90%R(Indoor no environmental light, lighting 10,000 times)
    0.1~5m@10%R-90%R(Outdoors 60KLux)Increased power consumption,Under 800 MW(30,000 times)
    Measure Frequency 20KHZ~30KHZ
    Scan Frequency 10Hz
    Echo Mode Single Pulse
    Echo intensity yes(0~1024)
    Scanning Principle Flash
    Laser points 40*30
    Vertical Angle 43°
    Measure Angle 54°
    Vertical Resolution 1.4°
    Horizontal Resolution 1.4°
    Ranging Accuracy ±20mm@ (Indoor environment≤2m) ±30mm@ (Indoor environment>2m)
    Range Resolution mm
    Communication Interface USB
    Optical Interference Resistance 40000Lux
    Weight <40g
    Supply Voltage 5V 1A(Need to support multiple power supplies)
    Working Temperture -10℃~ +50℃
    Power Dissipation ≤ 1.5W
    Protective Class IP5X
    Size(mm) 45.3*24.34*16.8mm
